Quick Seal series

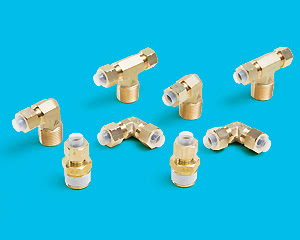

Insert type brass specifications

High pressure specifications
Heat-resistant
High pressure fitting _JIS_ Quick seal insert type brass specification
Fluid used
Air
Water
General hydraulic oil
Operating
temperature
limit
(Nylon sleeve)		 -40℃~ +80℃ 0℃~ +70℃ -40℃~ +80℃
Operating
temperature
limit
(Brass sleeve)		 -40℃~ +100℃ 0℃~ +100℃ -40℃~ +100℃
Maximum
working
pressure		 5.0MPa

Screw-in type for multi-purpose piping

High sealing performance

Available for piping among high pressure range

JIS B 8381-1995 (fittings for pneumatic flexible pipes) compliant

Applicable tube / related products

Pneumatic tube_flexible tube_ether-based polyurethane tube
Urethane tube

U2、U1、U5
Weatherable tube_Oil resistant tube_Nylon tube
Nylon tube

N2、N1、N5
Robot tube_Chemical resistant tube_Flexible fluororesin 2-layer tube
Tube for painted piping

TES
Dielectric breakdown prevention tube_Conductive tube_Charging breakdown prevention tube
Antistatic tube

ES、UE
Spatter tube_Spot welding tube_Flame retardant tube
Flame-retardant tube

FUK、FS、FW、FWU
Food Sanitation Law Compliant Tube_Food Processing Machine Tube_PB Tube
Polybutene tube

PB

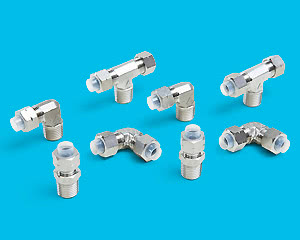

Insert type SUS304 specification

High pressure specifications
Stainless
Sunteres Fittings_JIS_ Quick Seal Insert Type SUS304 Specifications
Fluid used
Air
Water
General hydraulic oil
Operating
temperature
limit
(Nylon sleeve)		 -40℃~ +80℃ 0℃~ +70℃ -40℃~ +80℃
Maximum
working
pressure		 5.0MPa

Screw-in type for multi-purpose piping

High sealing performance

Available for piping among high pressure range

JIS B 8381-1995 (fittings for pneumatic flexible pipes) compliant

Applicable tube / related products

Pneumatic tube_flexible tube_ether-based polyurethane tube
Urethane tube

U2、U1、U5
Weatherable tube_Oil resistant tube_Nylon tube
Nylon tube

N2、N1、N5
Robot tube_Chemical resistant tube_Flexible fluororesin 2-layer tube
Tube for painted piping

TES
Dielectric breakdown prevention tube_Conductive tube_Charging breakdown prevention tube
Antistatic tube

ES、UE
Spatter tube_Spot welding tube_Flame retardant tube
Flame-retardant tube

FUK、FS、FW、FWU
Food Sanitation Law Compliant Tube_Food Processing Machine Tube_PB Tube
Polybutene tube

PB

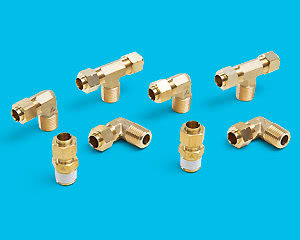

Insertless type

Pneumatic fitting_Large flow rate_Quick seal Insertless type
Fluid used
Air
Operating
temperature
limit		 -40℃～ +100℃
Maximum
working
pressure		 1.0 MPa

For general pneumatic piping.

Large effective sectional area due to lack of an insertion part.

Applicable tube / related products

Weatherable tube_Oil resistant tube_Nylon tube
Nylon tube

N2、N1、N5

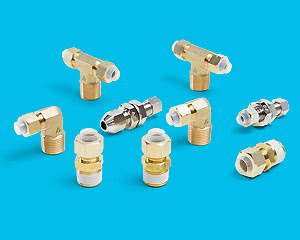

DK tube dedicated type

Pneumatic fitting_Decabon tube_Quick seal DK tube dedicated type
Fluid used
Air
Operating
temperature
limit		 -40℃～ +60℃
Maximum
working
pressure		 1.0 MPa

Screw-in type fitting dedicated for DK tubing.

Applicable tube / related products

1300 tube_transformation tube_DK tube
Tube for fixed piping

DK

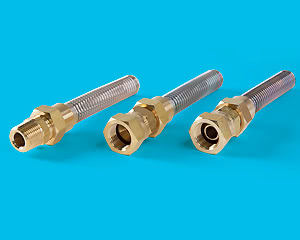

Nylon coil dedicated type

Pneumatic fitting_S tube_Nylon coil tube dedicated type
Fluid used
Air
Operating
temperature
limit		 -40℃～ +100℃
Maximum
working
pressure		 1.2MPa

Screw-in type fitting dedicated for nylon coil tubing.

Applicable tube / related products

Coil tube_spiral tube_nylon coil tube
Nylon coil tube

S
